SHR - High-Density Rigid Horizontal Band Saw

SHR
High-Density Band Saw

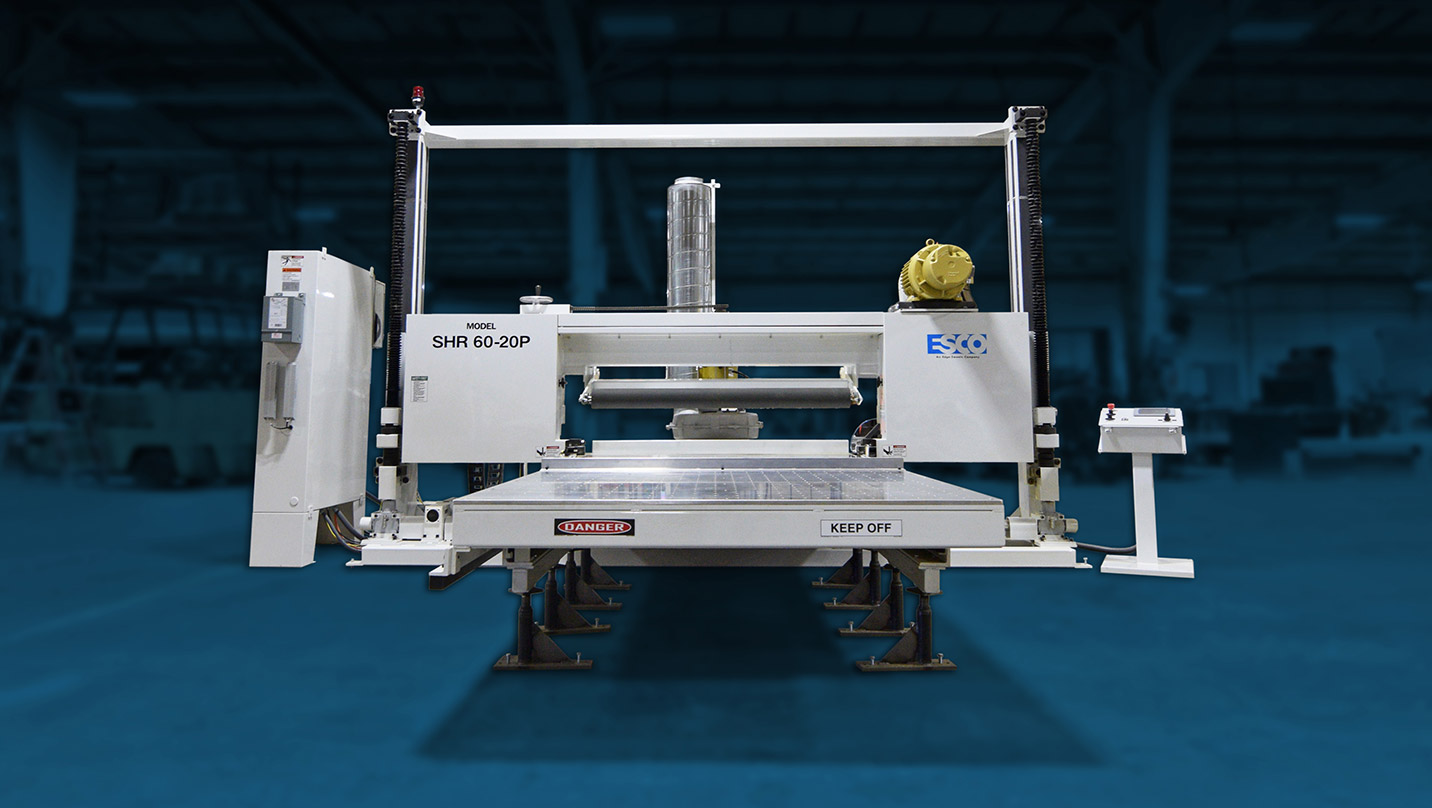

The SHR 60-20 is a two wheel splitter for medium to high density material. It is the ideal mid range splitter for rigid PU and heavy packaging materials such as high ILD/IFD foams, headliner applications such as honeycomb materials up to higher density lightweight materials including corrugated cardboard and balsa wood

  • Overview
  • Standard Features
  • Optional Features
  • Technical Specifications
  • Floor Space Required

Overview

The Model SHR-60-20 is a rigid horizontal saw used for cutting material such as balsa wood, composite materials, vacuum formed thermoplastics and honeycomb. This high-speed saw has a wood table surface and dust collection system on the blade.

Common Applications

Automotive, packaging, marine, aerospace, wind

Commonly Processed Materials

PUR rigid foam, PVC rigid foam, PET materials, cardboard packaging, honeycomb, polystyrene/EPS, balsa wood, thermoformed plastics

Download Brochure

SHR Specifications [Downloadable PDF][Opens in New Window]

  • Manual push table standard
  • Touch-screen controls mounted on freestanding podium
  • Rugged blade guide
  • 30" [762 MM] Steel wheels
  • Blade tension adjustment
  • Programmable PLC with indexing and batch count
  • 4" [102 MM] Pressure rollers with hand wheel adjustment
  • Variable speed table drive
  • Dual-zone vacuum table with independent control
  • Vacuum conveyor
  • Automatic or semi-automatic controls available

Operator Controls

  • Touch-screen controls mounted on freestanding podium
  • Manual controls standard
  • Automatic or semi-automatic controls available [Optional]

Head Assembly

  • Independent head assembly rides on precision ball screws that are protected by flexible dust covers

Table Assembly

  • Manual push table is standard, 60" [1524 MM] X 108" [2743 MM]
  • Variable speed table drive: 5-50 FPM [1.5-15 M/MIN] Forward movement, 50 FPM [15 M/MIN] Fixed or controlled reverse movement
  • Vacuum conveyor 22'-50' [6.7-15 M] Length in place of table

Power Requirements

  • 230/460 VAC, 3-Phase, 60 HZ
  • Optional electrics available. Contact your salesperson today.
SHR Specifications
Cutting Height [Over Blade] 20" [508 MM]
Cutting Height [Under Blade] 48" [1219 MM]
Cutting Width 145" [3683 MM]
Cutting Length 246" [6248 MM]
Floor space required:
Overall Width 145" [3683 MM]
Overall Length 246" [6248 MM]
Maximum Height 120" [3048 MM]
